MeshGrid

Quick facts
Grid	MeshGrid
CellType	NGonCellType*
CellDir	CellDir*
CellRotation	CellRotation*
Bound	None
Properties	2d, Finite
*NGonCellType represents any polygon. But for 4 and 6 sided faces, the values overlap with SquareCellType and HexCellType, and the corresponding SquareDir, SquareRotation, PTHexDir, HexRotation.

MeshGrid represents any finite grid constructed out of polygons. Each polygon (or "face") becomes a cell, with two cells being adjacent if they share an edge in common. MeshGrid is one of the most flexible grid offered by Sylves

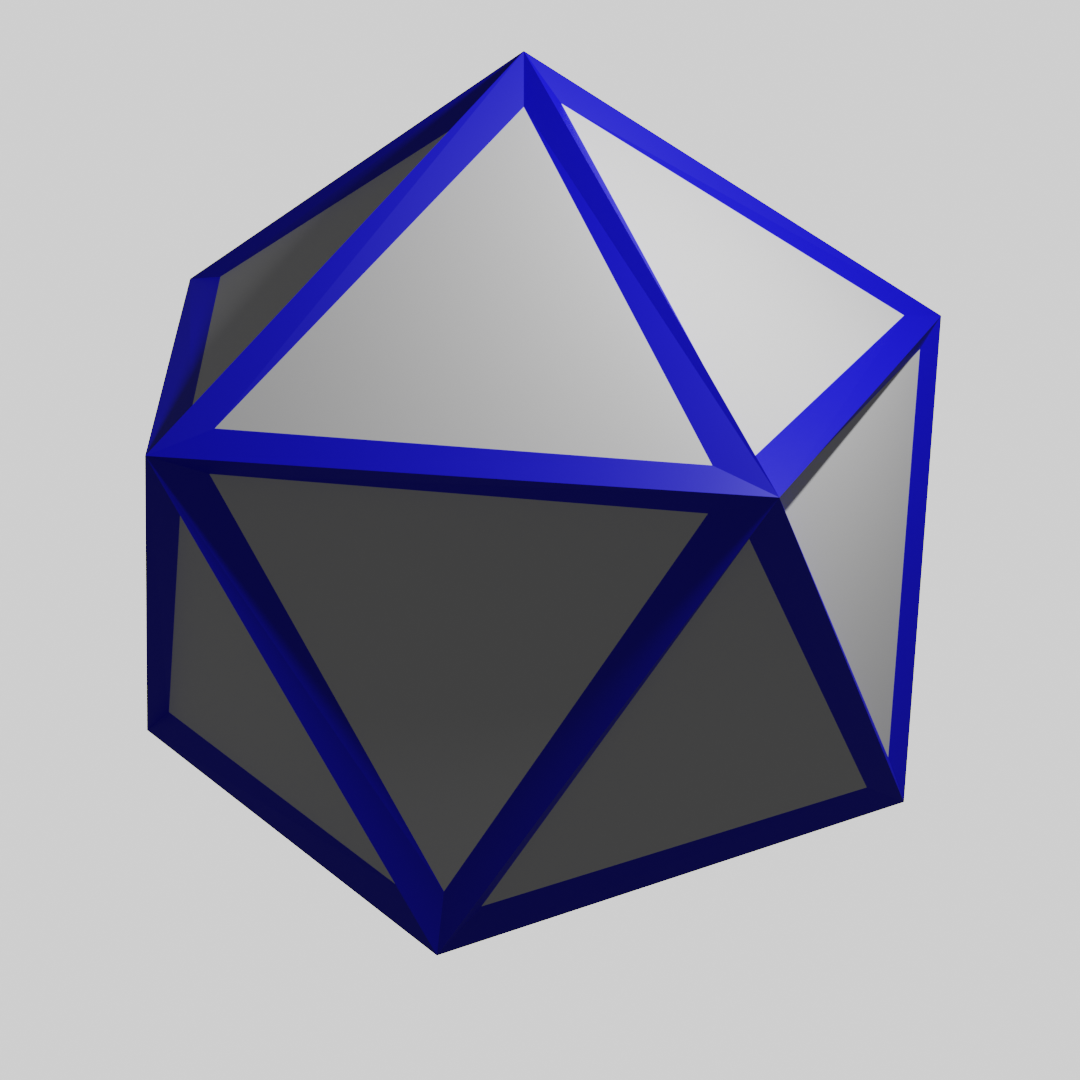

MeshGrid is a 2d grid as each cell is flat, but they don't have to be confined to a flat plane. It can just as easily represent a surface curving through 3d space, such as a polyhedron.

MeshGrids are constructed from a MeshData and a MeshGridOptions object.

MeshData

MeshData describes a mesh in a fashion nearly identical to Unity's Mesh object: You supply an array of Vector3 that gives the vertices of the mesh, and then an array of "indices" that indicate which vertices belong to which faces. The exact format of the indices array is given by a values from MeshTopology:

• MeshTopology.Triangles - Each set of three consecutive elements in the index array specifies one triangle.
• MeshTopology.Quads - Each set of four consecutive elements in the index array specifies one quad.
• MeshTopology.NGon - Each "run" of elements in the index array specifies one polygon. A run is a series of non-negative integers followed by a negative integer. The negative integer will be bitwise negated (the ~ operator) to convert it to an index.

Optionally, you can also supply uvs, normals and tangents in a MeshData, for use cases that use those. You can also supply more than one index array and MeshTopology value, to breakdown the mesh into multiple submeshes, usally when each submesh uses a different material when rendering.

Internally, MeshGrid stores cells in a spatial hash to efficiently find cells when queried. This may lead to performance issues if the cells are wildy different sizes to each other.

MeshGridOptions

UseXZPlane

If set, assumes the 2d plane that a face maps from is in the XZ axis.

InvertWinding

If false, vertices and edges of the mesh are assumed to be consistent with Sylves conventions, counter clockwise winding.

E.g. for a quad

• edges 0 => SquareDir.Right, 1 => SquareDir.Up, 2 => SquareDir.Left, 3 => SquareDir.Down
• verts 0 => DownRight, 1 => UpRight, 2 => UpLeft, 3=> DownLeft

If true, the order of vertices is swapped

E.g. for a quad

• edges 0 => Square.Left, 1 => SquareDir.Up, 2 => SquareDir.Right, 3 => SquareDir.Down
• verts 0 => DownLeft, 1 => UpLeft, 2=> UpRight, 3 = DownRight

DoubleOddFaces

If set, odd faces become cells with twice as many edges. It's often more convenient to work with even polygons as an about face is possible.

Cell co-ordinates

The x value is used to index the face in the submesh, the y value indicates the submesh, if any, and the z value is unused.

Deformation

Even though each cell in the grid can have a unique shape, all cells with the same number of sides share the same cell type, NGonCellType.Get(sides).

Working with uniquely shaped cells can be tricky. It can be useful to use MeshGrid.GetDeformation, which provides a function that maps from a regular polygon to the specially shaped one of that cell. Using that you can warp a pre-made mesh to fit the cell exactly. There are some more details in the concepts documentation.
